Today's post is very heavy with pictures, so my apologies in advance for those of you with slower connection speeds. I have a dial-up connection myself, so I understand your pain. Any picture can be enlarged by clicking upon it.

One more comment: I wish to be clear that I very much welcome comments on my posts, as it gives me some idea if the material I am posting is of interest to anyone out there. I realize that the comment post function is only open to those who have, or are willing to open, a Google account, and I well realize that many people won't want to do that. So, I'm going to try a different tack: I'll make the comment function open to all, no google account or anything like that required, however in effort to guard against unwelcome spam, I will set it so that all comments are subject to moderation from me before they actually post up. Any legitimate comment, so long as it is constructive, non-spamming, and without ad hominem or x-rated in some form, will be posted. Criticism is fine. Don't worry, I won't edit your words, even if you make typos more often than I do. If you accidentally duplicate your posted comments, I will post up only the newest version - or leave me a note letting me know which one you want posted. It will mean a slight delay from the time you post your comment until the time it shows up on the blog, but I'm on here every day, so it won't be much of a wait.

So, where were we?...

With the Indian Rosewood panel for the top 95% complete, I set to work on the frame pieces for the top. Here I was down to a reduced stock of Walnut, not having anticipated the need to make the top in the initial material purchase. I had enough to do it, but not the optimal choice of wood. A couple of the pieces had already been moving towards some other project in the shop and M had worked them over I guess with his orbital sander - I discovered the marks later. Fortunately there had been a change to that project and I was able to pry these pieces out of his grasp - it took a few passes with my plane to get those orbital scratch marks out of the wood.

The ideal choice would have been Walnut with very straight grain, in pure quarter-sawn or rift-sawn orientation. These pieces were a little less than perfect, but by carefully positioning the joint sections on straight grain runs, I could feel confident about about the solidity. You can't just put a joint anywhere in a piece of wood. Driving a peg or wedge into a joined construction adds a loading force to a joint, compression or tension, depending, and this load will find any weakness. Add the loads that the structure may receive in use, and you can see the importance of considering the matter carefully. Again, coming from a timber framing background, so I think first and foremost about structure and joinery issues. Sloping grain, internal flaws, voids and splits in the material can lead to premature failure of a joint located in such an area, not to mention the increased difficulty this presents for cut-out.

Once I had the stock dimensioned a few hundredths of an inch over final size, I set to mark out and cut the joinery. Given the offset between the lower face and the upper face, so as to allow the panel to be as large as possible, the joinery was slightly more complicated than it would be otherwise. With a bit of time spent drawing, I was able to resolve these issues, making room for the panel to fit, and provide robust joint internals.

Once again, I choose the Japanese wedged locking miter joint, IMO the finest type of joint for this application, its only drawbacks being the time-consuming nature of its making, and the costs that associate to that. Among orthogonal joinery, this is one of the more complex. Why go to the trouble? Well, this joint allows for a miter on the visible faces, giving a pleasing continuity of grain around the joined corner, and the locking mechanism allows for good mechanical strength, without recourse to glue. I also has a discreet appearance, which I like. Of those who even notice this joint, in my experience, most tend to think it is some sort of splined or feathered construction, which it is not.

There are various versions of this type of Japanese woodworking joint - some wedged from the outside, some from the inside, some wedged at the corner, and some wedged adjacent to the corner (as in the top on the pentagon stool shown in an earlier post). In thicker pieces of stock, the internals of the joint are multiplied - I have seen tripled versions with 6 wedges on some applications. This version uses a single internal tenon and the wedges are doubled. The doubling helps to drive the joint together with a balance of force topside and on the lower side.

First off, I roughed out the joints, using a combination of table saw, hand saw and router:

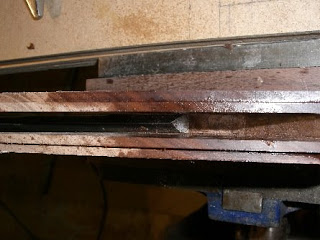

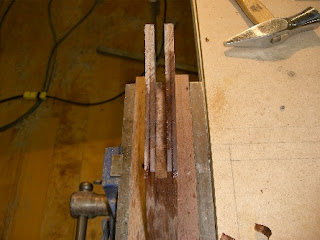

Then I set about chopping out the slot mortises to receive their tenons:

Also visible in this photo are the stub tenons, or mechi:

It helps to have long paring chisels for tasks like these, this is a Tasai 10mm in the shinogi pattern:

Then I adjusted the mechi with my shoulder plane:

Here we are after a couple of pieces have been mortised. The two male ends visible have yet to have grooves cut into them to accept the mechi:

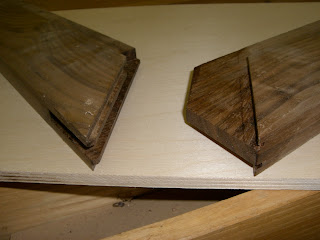

Here's a male-female set, mechi complete:

Now I've processed the stepped rabate with dado for the panel on all 4 pieces:

Time for a trial fit:

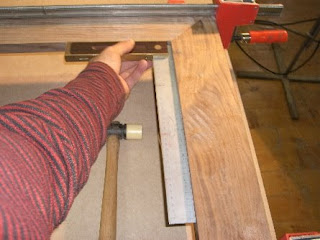

Once together, check for square with each pair and adjust as necessary. These two are looking pretty good right off the bat:

After working my way around, I then clamp up all the pieces, and check it all for square and tight. Then a little fiddling as may be necessary, however there really isn't much room for error. I leave the abutting surfaces just a hair fat so as to allow for some degree of room for paring-to-fit. One thing I learned in ju-jutsu is to pin the opponent with a light amount of force (this is the ideal, and means you have good technique) - in woodwork, I take this idea and apply it to clamping. Clamp lightly when checking for fit - if it requires thousands of pounds of force to squeeze together, the fit is poor.

Everything clamped together and looking decent at this stage:

With the fit satisfactory, I could lay out the ramp-ways for the wedges. These one are offset halfway from each other:

And then knife the marked lines:

Here I use a small guide block and my kumiko dozuki saw, 32 t.p.i, to cut the ramp shoulders:

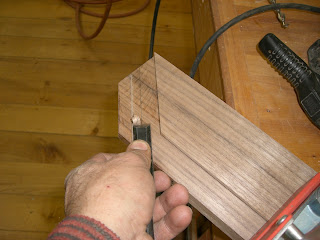

Then it's time for a bit of chisel work to process the flanks of the ramp-ways:

That's one side done:

Nearly complete:

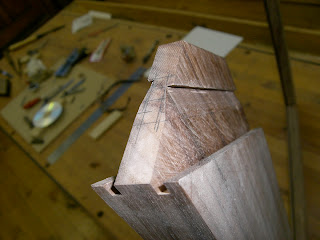

And here it is:

Then I work on the more difficult female halves of each joint, this one is a little rough at this stage:

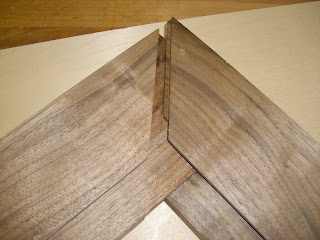

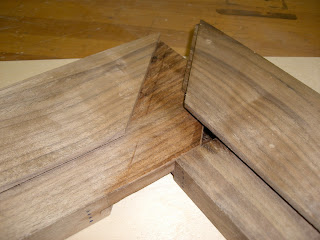

After all the joints are cut, I offer them up to see how the joints look:

This one is nearly fully-closed and is looking fine:

The next step was to profile the edge of the frame - I chose a semi-elliptical type of rounding the lower edge, and lightly chamfered the upper edge. The rounding was accomplished using some specialty Japanese chamfer planes I have in my set.

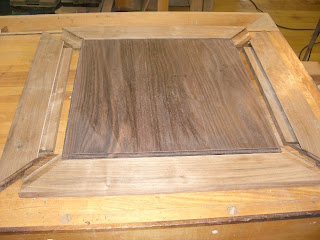

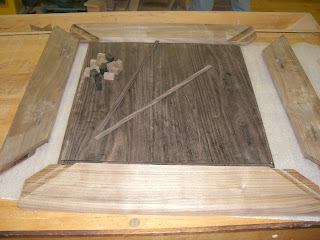

Here are the pieces of the top in preparation for final assembly. This follows a dry run assembly to be sure everything is fitting as appropriate:

Come together...

...right now...

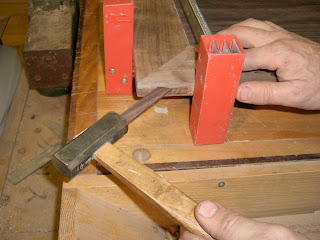

...over me! Time for the glue - oh yeah, no glue! In go the wedges:

Here's one wedge driven in:

And the other:

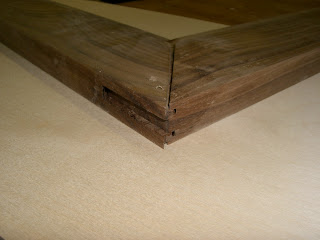

After the wedge ends are trimmed, it looks like this, with just a little planing required to clean the surfaces up:

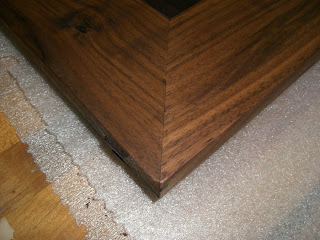

And the miter looks like this:

It was the same result on all four corners, so it seemed redundant to post pictures of each corner.

The final post in this series will deal with attaching the top to the frame, without metal fasteners, and a bunch of pictures of the completed piece. As you'll see, Indian Rosewood has a deserved reputation for beauty.
